The Origin pull protocol and Pull content from settings control how CDN servers fetch content from the origin. Both options are in the General section of the CDN resource settings.

​
Origin pull protocol

In the Gcore Customer Portal, navigate to CDN > Resources and click the resource name. Open the OPTIONS tab and scroll to the General section. Use the Origin pull protocol option to set the protocol that CDN servers use to pull content from an origin server: HTTP, HTTPS, or HTTP and HTTPS.

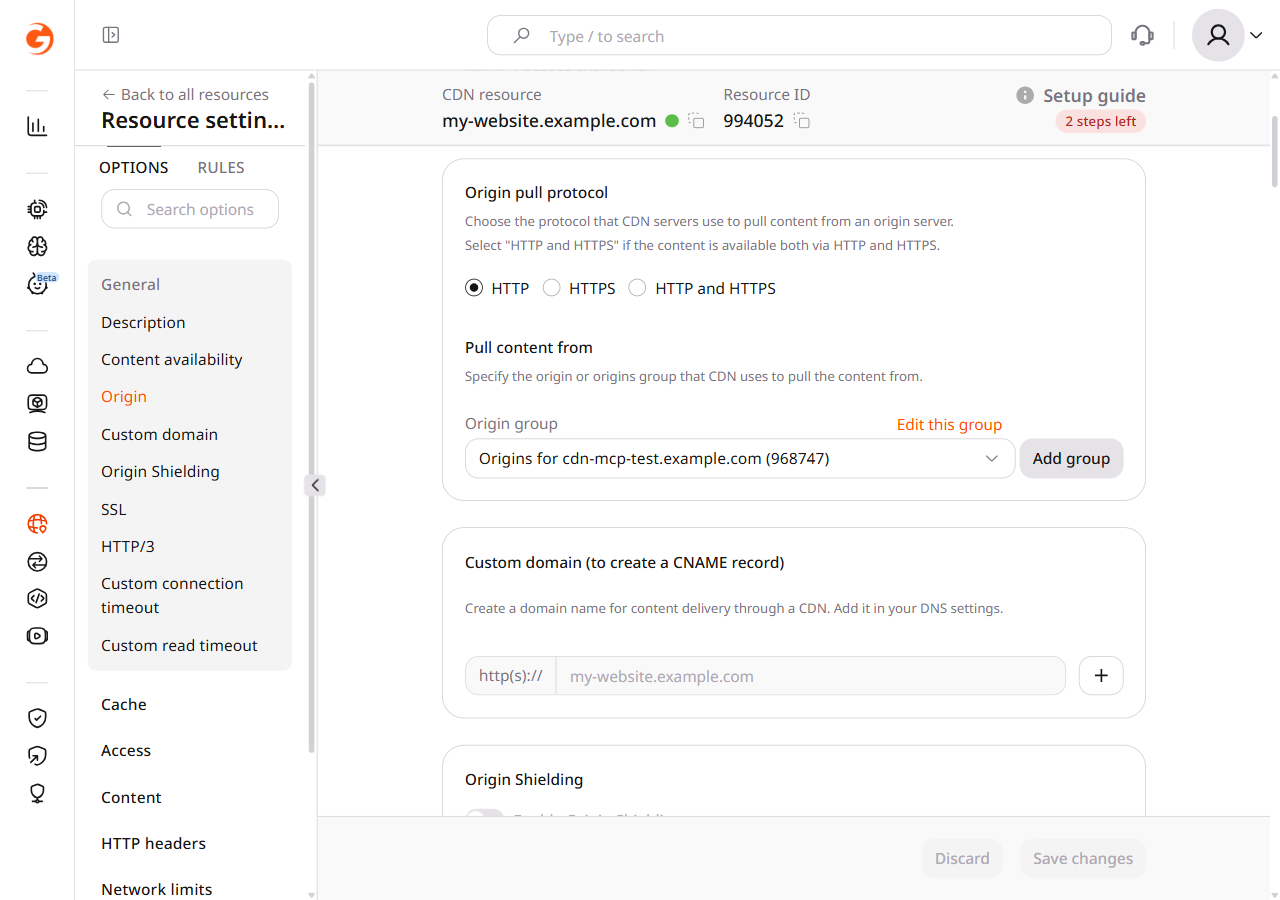

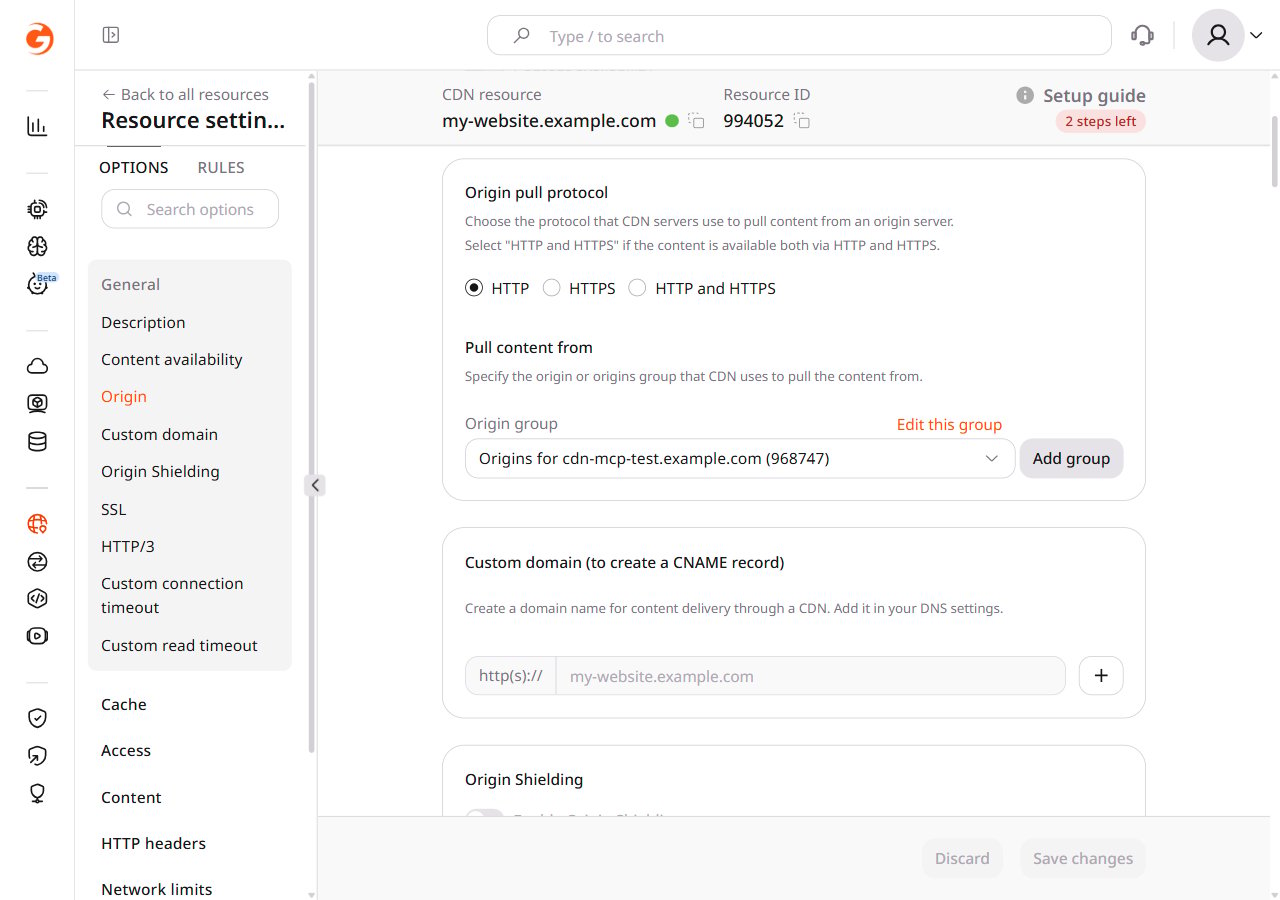

Origin pull protocol and Pull content from settings in the General section
Select the origin pull protocol based on the protocol supported by the origin server:
  1. HTTP — if the content on the origin server is available only via HTTP (port 80) or there is a redirect from HTTPS to HTTP on the origin server.
  2. HTTPS — if the content on the origin server is available only via HTTPS (port 443) or there is a redirect from HTTP to HTTPS on the origin server.
  3. HTTP and HTTPS — if the content on the origin server is available via both HTTPS and HTTP. A CDN server uses the protocol that matches the client’s request:
    • Files are cached for both protocols. There are two versions of the file in the cache: one for HTTP and one for HTTPS.
    • When a user sends a request to https://cdn.example.com/image.jpg, the CDN pulls from the origin through HTTPS (port 443).
    • When a user sends a request to http://cdn.example.com/image.jpg, the CDN pulls from the origin through HTTP (port 80).
To understand the effect of an incorrect value, consider this example: The origin server delivers content only through HTTPS (port 443), but Origin pull protocol is set to HTTP.
  1. Origin redirects from HTTP to HTTPS
    1. A user requests content at http://cdn.example.com/image.jpg.
    2. The CDN pulls from the origin at http://example.com/image.jpg.
    3. The origin redirects to https://example.com/image.jpg.
    Conclusion: the user gets content from the origin, not from the CDN. Set the protocol to HTTPS to have content delivered through the CDN.
  2. Origin does not redirect from HTTP to HTTPS
    1. A user requests content at http://cdn.example.com/image.jpg.
    2. The CDN pulls from the origin at http://example.com/image.jpg.
    Conclusion: the origin cannot provide content because it only accepts https://example.com/image.jpg. Set the protocol to HTTPS to have content delivered through the CDN.

​
Pull content from

Use the Pull content from section to specify the origin group that the CDN uses to pull content. The origin can be an IP address or a domain name. To change the current origin group, click Edit this group. To add a new origin group, click Add group. After the group is created, select it from the origin group dropdown — it is not assigned to the resource automatically.

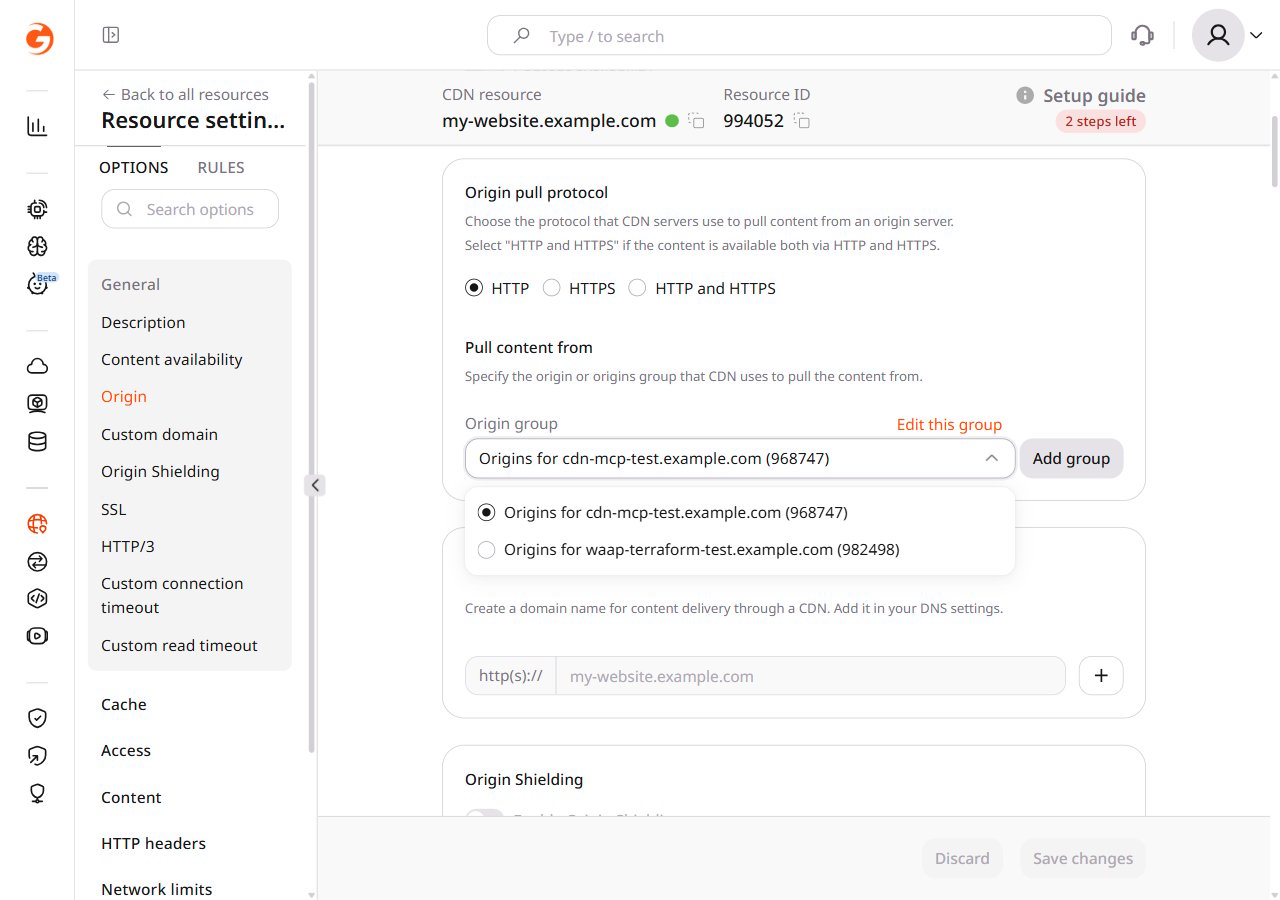

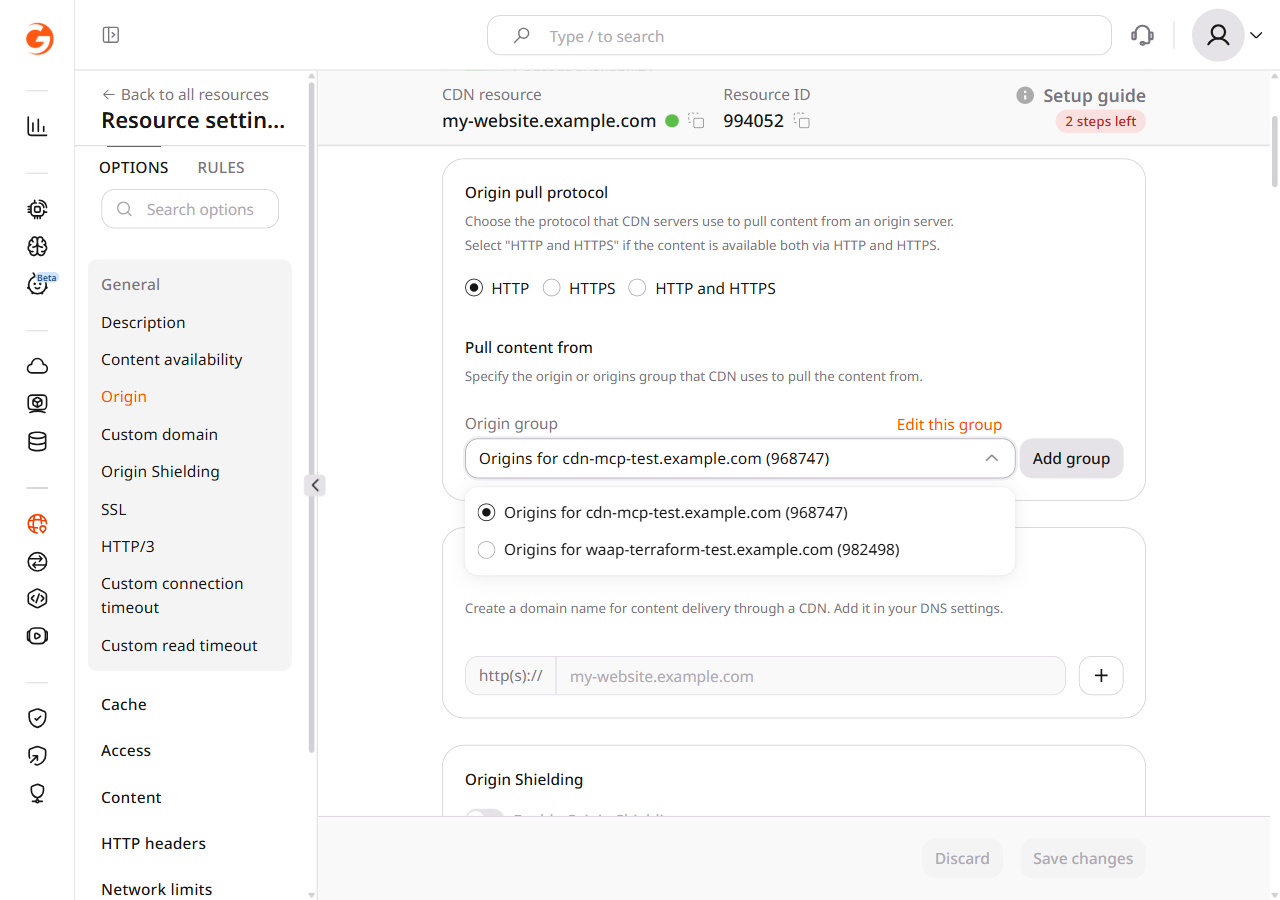

Origin group dropdown showing available groups to select
