Webhooks on system state changes

A webhook is an HTTP POST callback sent to a server-side endpoint when a defined event occurs. The Video Streaming service uses webhooks to notify an app when the state of a live stream, VOD video, or restream changes, eliminating the need to poll the API.

Webhook types

A single universal endpoint is used for all types of webhooks.

{
  "type": "stream|video|video_delete|restream",
  "message": { ... }
}

Entity	Event	type value
Live stream	State change	stream
VOD video	State change	video
VOD video	Deletion	video_delete
Restream	State change	restream

Each payload contains the main fields needed to identify the entity and process the state change.

Webhooks for live streams

When the state of a live stream changes, the system triggers a webhook with type stream. The payload contains a message.stream object. Webhooks fire on key state changes — ingest start, transcoding start, stream stop — and carry enough data to track whether a stream is active, whether playback output is ready, and the stream source (PUSH or PULL).

The state fields change as the stream moves through the following stages:

Stage	live / backup_live	transcoding	recording	Description
Primary ingest starts	true	false	false	Primary source connects; ingest is active, but playback output is not ready yet.
Transcoding starts	true	true	false	Playback output is ready with status 200 OK; use this stage to show or activate a player for users.
Recording starts	true	true	true	The live stream is being recorded.
Stream stops	false	false	false	Final stage: the stream source disconnects or the broadcast ends, so the stream is not active.

Use live: true (or backup_live: true) to track active ingest. Use transcoding: true to track when the live stream is ready for playback.

Read more in stream availability.

Field	Type	Description
id	int	Unique identifier of the stream
live	bool	true while the primary ingest source is connected; false after it disconnects
backup_live	bool	true while the backup ingest source is connected; false otherwise
recording	bool	true if the stream is being recorded
transcoding	bool	true if transcoding has started and playback output is ready, false by default
client_user_id	string	Optional client-defined user ID, null if not provided
client_entity_data	string	Optional client metadata associated with the stream, null if not provided
pull	bool	true if the stream is pulled from an external origin, false if pushed
uri	string	The source URI of the stream
stream_source_type	string	Type of the stream source: rtmp, srt, webrtc, https

Example:

Stream is ready for playback:

{
  "type": "stream",
  "message": {
    "stream": {
      "id": 1001,
      "live": true,
      "backup_live": false,
      "recording": false,
      "client_user_id": 10000001,
      "client_entity_data": "{ 'seq_id': '1234567890', 'name': 'John Doe', 'iat': 1516239022 }",
      "pull": false,
      "uri": "srt://vp-push-ed1-srt.gvideo.co:5001?streamid=12345#aaabbbcccddd",
      "stream_source_type": "srt",
      "transcoding": true
    }
  }
}

Stopped stream:

{
  "type": "stream",
  "message": {
    "stream": {
      "id": 1002,
      "live": false,
      "backup_live": false,
      "recording": false,
      "client_user_id": 10000001,
      "client_entity_data": "{ 'seq_id': '1234567890', 'name': 'John Doe', 'iat': 1516239022 }",
      "pull": true,
      "uri": "https://.../master.m3u8",
      "stream_source_type": "https",
      "transcoding": false
    }
  }
}

Webhooks for VOD

VOD webhooks use type: video for create and status updates, and type: video_delete when a video is deleted.

Webhook type	Status	Description
video	empty	Video entity is created, but the source file is still being received.
video	pending	Source file has been received and is being transcoded.
video	viewable	Playback is already available (not all qualities and codecs are ready, so transcoding is still ongoing).
video	ready	All qualities and codecs are processed and available for playback.
video	error	Upload or processing failed; check the error field.
video_delete	Current video status	Video entity was deleted.

A full description of each status is in VOD statuses.

VOD create and update

The converted_videos[].status field tracks each rendition independently of the top-level status.

Field	Type	Description
id	int	Video ID
slug	string	Public identifier used in playback URLs
name	string	Video name
duration	int	Duration of the video in milliseconds
stream_id	int | null	Stream ID if it was recorded from a live stream, otherwise null
status	string	Processing status of the video: empty, pending, viewable, ready, error
converted_videos	array	List of transcoded renditions with details
└─ name	string	Rendition label (e.g., vod1080p)
└─ status	string	Rendition status
└─ mp4_url	string	Direct URL for a rendition in MP4 format

VOD processing statuses in the API reference:

• Video status — status
• Rendition status — converted_videos/status

Example:

Video upload started:

{
  "type": "video",
  "message": {
    "video": {
      "id": 2001,
      "slug": "bJkptcIp9a5wrowz",
      "name": "football_videoplayback_720",
      "duration": 43989,
      "stream_id": null,
      "status": "empty",
      "converted_videos": []
    }
  }
}

Video becomes viewable while some renditions are still processing:

{
  "type": "video",
  "message": {
    "video": {
      "id": 2001,
      "slug": "bJkptcIp9a5wrowz",
      "name": "football_videoplayback_720",
      "duration": 43989,
      "stream_id": null,
      "status": "viewable",
      "converted_videos": [
        {
          "name": "4029_h264_720p",
          "status": "complete",
          "mp4_url": "https://102748.gvideo.io/videos/102748_bJkptcIp9a5wrowz/qid4029v1_h264_2700_720.mp4"
        },
        {
          "name": "4014_hevc_720p",
          "status": "processing",
          "mp4_url": "https://102748.gvideo.io/videos/102748_bJkptcIp9a5wrowz/qid4014v1_hevc_1620_720.mp4"
        },
        {
          "name": "3999_av1_720p",
          "status": "processing",
          "mp4_url": "https://102748.gvideo.io/videos/102748_bJkptcIp9a5wrowz/qid3999v1_av1_1350_720.mp4"
        }
      ]
    }
  }
}

VOD delete

A webhook with type video_delete fires when a video is deleted via API or portal. It carries the video ID, slug, name, status at the time of deletion, and deletion timestamp.

Field	Type	Description
id	int	Video ID
slug	string	Public identifier used in playback URLs
name	string	Video name
status	string	Processing status of the video
deleted_at	timestamp	ISO-8601 UTC timestamp of when the deletion was committed in the system

Example:

{
  "type": "video_delete",
  "message": {
    "video": {
      "id": 2001,
      "slug": "bJkptcIp9a5wrowz",
      "name": "football_videoplayback_720",
      "status": "ready",
      "deleted_at": "2025-09-16T13:50:42.000Z"
    }
  }
}

Webhooks for restreams

When a restream changes state — starts or stops — the system sends a webhook with type restream. The payload contains a message.restream object.

Stage	live	Description
Restream starts	true	Restream is active and sends the source live stream to the destination.
Restream stops	false	Final stage: restream is not active and no longer sends content to the destination.

Field	Type	Description
id	int	Unique identifier of the restream.
name	string	Human-readable name of the restream.
stream_id	int	ID of the source live stream that this restream is linked to.
live	bool	true if the restream is currently active, false if it stopped.

Example:

Restream starts:

{
  "type": "restream",
  "message": {
    "restream": {
      "id": 3001,
      "name": "RTMP from Broadcast#1 to YouTube",
      "stream_id": 1001,
      "live": true
    }
  }
}

Restream stops:

{
  "type": "restream",
  "message": {
    "restream": {
      "id": 3001,
      "name": "RTMP from Broadcast#1 to YouTube",
      "stream_id": 1001,
      "live": false
    }
  }
}

Webhook delivery

Webhooks are delivered from IP addresses 92.223.112.0/24 and 92.223.123.0/24. Add these ranges to the server allowlist.

Each event is sent once. If the receiving server is unavailable, the webhook is not retried.

Enable webhooks

Webhooks require manual setup by Gcore. Contact the support team with the endpoint URL to configure webhooks for the account.

1. Prepare an HTTP server

   Set up an HTTP server to receive webhooks.

2. Contact Gcore support

   Contact Gcore support via chat or email [e-mail] and request the webhook integration. Include the following in the request:

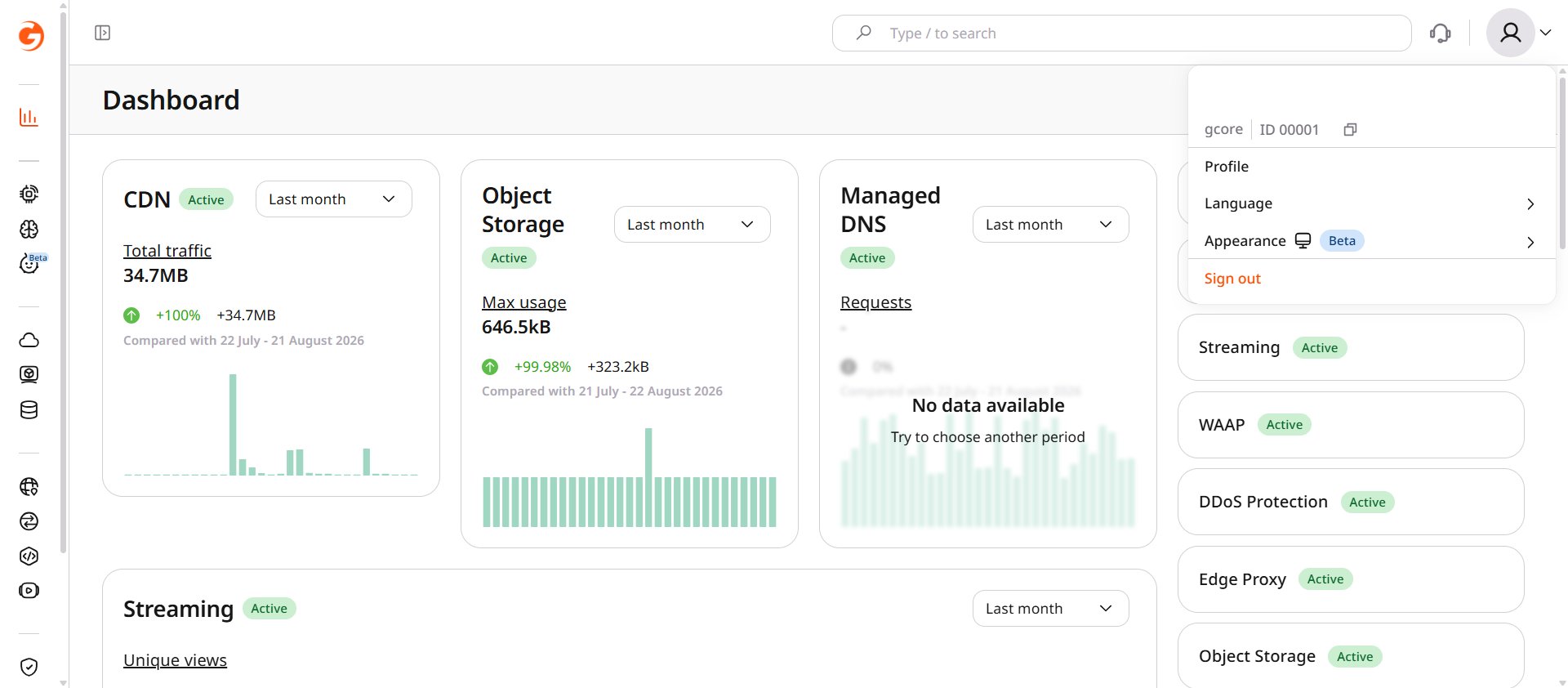

   • Account ID — click the profile icon in the top-right corner of the Gcore Customer Portal. The ID appears next to the account name in the dropdown.



   • Webhook endpoint URL — the server address that will receive the HTTP POST callbacks.
3. Receive confirmation

   Gcore support will confirm when the webhook integration is configured for the account.

A free tool for inspecting webhook payloads is available at https://webhook.site. It generates a temporary endpoint that captures and displays incoming requests. Send the generated endpoint URL to Gcore support when testing the integration.
